Descrição
Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.
Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características
| SIMPLES |
|
|

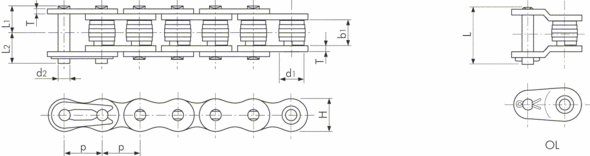

| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Força tensão ISO 606 | Força tensão Tsubaki | Peso Aprox. | ||||||
| P | R | W | Diâmetro (D) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T1) | (T2) |
Altura H (Max.) |
kN | kN |
Kg/m | ||
| RS40-SNS-1 | 12.70 | 1/2" | 8.50 | 7.95 | 3.97 | 8.25 | 9.95 | 18.00 | 1.50 | 12.00 | 17.7 | 19.1 | 0.64 | |
| RS50-SNS-1 | 15.875 | 5/8" | 10.50 | 9.53 | 5.09 | 10.30 | 12.00 | 22.50 | 2.00 | 15.00 | 28.4 | 31.4 | 1.04 | |
| RS60-SNS-1 | 19.05 | 3/4" | 12.60 | 12.70 | 5.96 | 12.85 | 14.75 | 28.20 | 2.40 | 18.10 | 40.2 | 44.1 | 1.53 | |
| RS80-SNS-1 | 25.40 | 1" | 16.80 | 15.88 | 7.94 | 16.25 | 19.25 | 36.00 | 3.20 | 24.10 | 71.6 | 78.5 | 2.66 |
