Descrição
Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.
Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características
| SIMPLES |
|
|

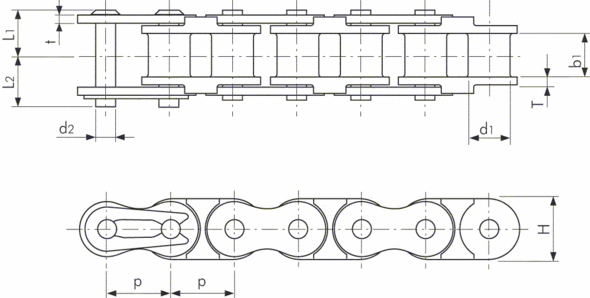

| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Força de tensão máxima |
Peso Aproximada |
|||||
| P | d1 | b1 | Diâmetro (D2) | Dimensões (L1) |
(L2) | Espessura (T) | Espessura (t) | Altura H(max.) | kN | Kg/m | ||
| RF25-PC-1 | 6.35 | 1/4" | 3.30 | 3.18 | 2.31 | 4.50 | 5.50 | 1.30 | 0.75 | 6.00 | 0.08 | 0.10 |
| RF35-PC-1 | 9.525 | 3/8" | 5.08 | 4.78 | 3.59 | 6.85 | 7.85 | 2.20 | 1.25 | 9.00 | 0.18 | 0.22 |
| RF40-PC-1 | 12.70 | 1/2" | 7.92 | 7.95 | 3.97 | 8.25 | 9.95 | 1.50 | 1.50 | 12.00 | 0.44 | 0.39 |
| RF50-PC-1 | 15.875 | 5/8" | 10.16 | 9.53 | 5.09 | 10.30 | 12.00 | 2.00 | 2.00 | 15.00 | 0.69 | 0.58 |
| RF60-PC-1 | 19.05 | 3/4" | 11.91 | 12.70 | 5.96 | 12.85 | 14.75 | 2.40 | 2.40 | 18.10 | 0.88 | 0.82 |
