Descrição

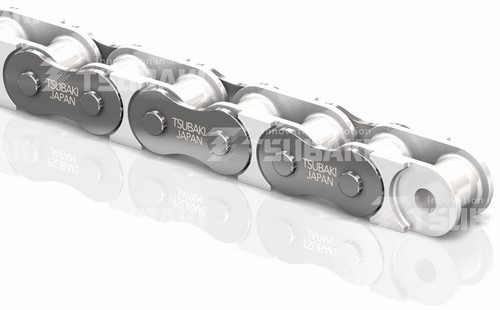

Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.
Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características
| SIMPLES |
|
|

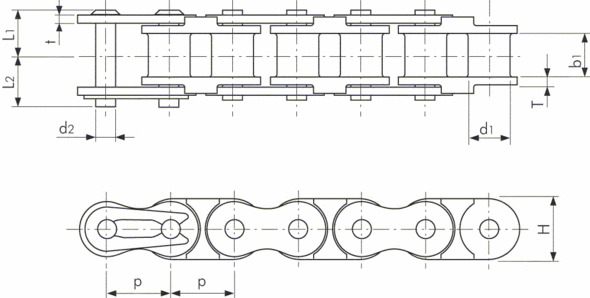

| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Força de tensão máxima |
Peso Aproximada |
|||||
| P | d1 | b1 | Diâmetro (D2) | Dimensões (L1) |
(L2) | Espessura (T) | Espessura (t) | Altura H(max.) | kN | Kg/m | ||
| RF06B-PC-1 | 9.525 | 3/8" | 6.35 | 5.72 | 3.28 | 6.50 | 7.25 | 1.30 | 1.00 | 8.60 | 0.20 | 0.23 |
| RF08B-PC-1 | 12.70 | 1/2" | 8.51 | 7.75 | 4.45 | 8.35 | 10.05 | 1.60 | 1.50 | 12.00 | 0.46 | 0.40 |
| RF10B-PC-1 | 15.875 | 5/8" | 10.16 | 9.65 | 5.08 | 9.55 | 11.25 | 1.50 | 1.50 | 14.70 | 0.53 | 0.51 |
| RF12B-PC-1 | 19.05 | 3/4" | 12.07 | 11.68 | 5.72 | 11.10 | 13.00 | 1.80 | 1.80 | 16.10 | 0.70 | 0.67 |
