Descrição
Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.

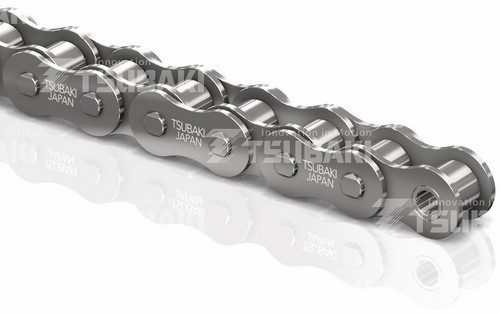

Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características
| SIMPLES |
|
|

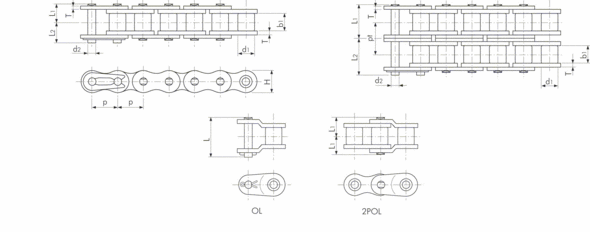

| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Passo Trans. | Força tensão máx. | Peso Aprox. | |||||
| P | R | W | Diâmetro (D) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T1) | Altura H (Max.) |
C | kN |
Kg/m | ||
| RS11-SS-1 |
37.465 | - | 2.285 | 1.83 | 1.57 | 2.275 | 3.165 | - | 0.38 | 3.50 | - | 0.05 | 0.052 |
| RS25-SS-1 |
6.35 | 1/4" | 3.30 | 3.18 | 2.31 | 3.80 | 4.80 | - | 0.75 | 5.84 | - | 0.12 | 0.14 |
| RS35-SS-1 |
9.525 | 3/8" | 5.08 | 4.78 | 3.59 | 5.85 | 6.85 | 14.70 | 1.25 | 9.00 | - | 0.26 | 0.33 |
| RS40-SS-1 |
12.70 | 1/2" | 7.92 | 7.95 | 3.97 | 8.25 | 9.95 | 18.60 | 1.50 | 12.00 | - | 0.44 | 0.64 |
| RS50-SS-1 |
15.875 | 5/8" | 10.16 | 9.53 | 5.09 | 10.30 | 12.00 | 23.90 | 2.00 | 15.00 | - | 0.69 | 1.04 |
| RS60-SS-1 |
19.05 | 3/4" | 11.91 | 12.70 | 5.96 | 12.85 | 14.75 | 29.40 | 2.40 | 18.10 | - | 1.03 | 1.53 |
| RS80-SS-1 |
25.40 | 1" | 15.88 | 15.88 | 7.94 | 16.25 | 19.25 | 39.00 | 3.20 | 24.10 | - | 1.77 | 2.66 |
| RS100-SS-1 |
31.75 | 1 1/4" | 19.05 | 19.05 | 9.54 | 19.75 | 22.85 | 46.50 | 4.00 | 30.10 | - | 2.55 | 4.01 |
| DUPLA |
|
|
| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Passo Trans. | Força tensão Tsubaki | Peso Aprox. | |||||
| P | R | W | Diâmetro (D) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T1) | Altura H (Max.) |
C | kN |
Kg/m | ||
| RS35-SS-2 |
9.525 | 3/8" | 5.08 | 4.78 | 3.59 | 11.05 | 11.95 | 24.60 | 1.25 | 9.00 | 10.10 | 0.52 | 0.69 |
| RS40-SS-2 |
12.70 | 1/2" | 7.92 | 7.95 | 3.97 | 15.45 | 17.15 | 33.50 | 1.50 | 12.00 | 14.40 | 0.88 | 1.27 |
| RS50-SS-2 |
15.875 | 5/8" | 10.16 | 9.53 | 5.09 | 19.35 | 21.15 | 41.80 | 2.00 | 15.00 | 18.10 | 1.37 | 2.07 |
| RS60-SS-2 |
19.05 | 3/4" | 11.91 | 12.70 | 5.96 | 24.25 | 26.25 | 52.60 | 2.40 | 18.10 | 22.80 | 2.06 | 3.04 |
| RS80-SS-2 |
25.40 | 1" | 15.88 | 15.88 | 7.94 | 30.90 | 33.90 | 68.05 | 3.20 | 24.10 | 29.30 | 3.53 | 5.30 |
| RS100-SS-2 | 31.75 | 1 1/4" | 19.05 | 19.05 | 9.54 | 37.70 | 40.80 | 81.60 | 4.00 | 30.10 | 35.80 | 5.10 | 7.99 |
