Descrição

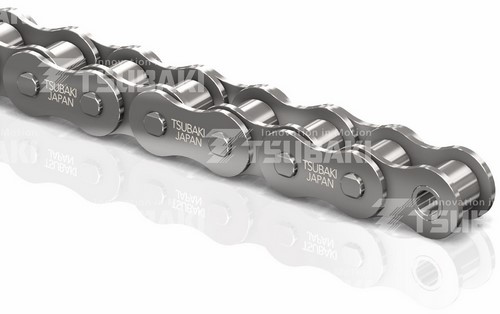

Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.
Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características
| SIMPLES |
|
|

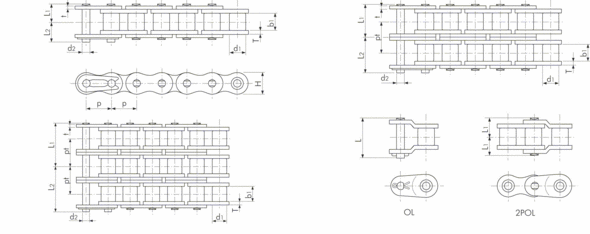

| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Passo Trans. | Força tensão max. | Peso Aprox. | ||||||
| P | d1 | b1 | Diâmetro (d2) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T) | t |
Altura H (Max.) |
C | kN | Kg/m | ||
| RF06B-SS-1 |
9.525 | 3/8" | 6.35 | 5.72 | 3.28 | 6.50 | 7.25 | 15.45 | 1.30 | 1.00 | 8.20 | - | 0.28 | 0.39 |
| RS08B-SS-1 |
12.70 | 1/2" | 8.51 | 7.75 | 4.45 | 8.35 | 10.05 | 20.05 | 1.50 | 1.50 | 12.00 | - | 0.50 | 0.70 |
| RS10B-SS-1 |
15.875 | 5/8" | 10.16 | 9.65 | 5.08 | 9.55 | 11.25 | 22.90 | 1.50 | 1.50 | 14.70 | - | 0.67 | 0.95 |
| RS12B-SS-1 |
19.05 | 3/4" | 12.07 | 11.68 | 5.72 | 11.10 | 13.00 | 26.70 | 1.80 | 1.80 | 16.10 | - | 0.89 | 1.25 |
| RS16B-SS-1 |
25.40 | 1" | 15.88 | 17.02 | 8.28 | 17.75 | 19.95 | 38.90 | 4.00 | 3.20 | 21.00 | - | 2.10 | 2.70 |
| RS20B-SS-1 |
31.75 | 1 1/4" | 19.05 | 19.56 | 10.19 | 20.10 | 23.10 | 48.40 | 4.50 | 3.50 | 26.00 | - | 2.95 | 3.85 |
| DUPLA |
|
|
| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Passo Trans. | Força tensão máx. | Peso Aprox. | ||||||
| P | d1 | b1 | Diâmetro (d2) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T) | t |
Altura H (Max.) |
pt | kN |
Kg/m | ||
| RF06B-SS-2 |
9.525 | 3/8" | 6.35 | 5.72 | 3.28 | 11.60 | 12.30 | 28.85 | 1.30 | 1.00 | 8.20 | 10.24 | 0.56 | 0.75 |
| RS08B-SS-2 |
12.70 | 1/2" | 8.51 | 7.75 | 4.45 | 15.30 | 17.00 | 34.60 | 1.50 | 1.50 | 12.00 | 13.92 | 1.00 | 1.35 |
| RS10B-SS-2 |
15.875 | 5/8" | 10.16 | 9.65 | 5.08 | 17.85 | 19.55 | 39.40 | 1.50 | 1.50 | 14.70 | 16.59 | 1.34 | 1.85 |
| RS12B-SS-2 |
19.05 | 3/4" | 12.07 | 11.68 | 5.72 | 20.90 | 22.70 | 46.10 | 1.80 | 1.80 | 16.10 | 19.46 | 1.78 | 2.50 |
| RS16B-SS-2 |
25.40 | 1" | 15.88 | 17.02 | 8.28 | 33.55 | 35.75 | 73.80 | 4.00 | 3.20 | 21.00 | 31.88 | 4.20 | 5.40 |
| TRIPLA |
|
|
| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Passo Trans. | Força tensão máx. | Peso Aprox. | ||||||
| P | d1 | b1 | Diâmetro (d2) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T) | t |
Altura H (Max.) |
pt | kN | Kg/m | ||
| RS08B-SS-3 |
12.70 | 1/2" | 8.51 | 7.75 | 4.45 | 22.25 | 23.95 | 18.60 | 1.50 | 1.50 | 12.00 | 13.92 | 1.50 | 2.00 |
| RS10B-SS-3 |
15.875 | 5/8" | 10.16 | 9.65 | 5.08 | 26.20 | 27.80 | 56.00 | 1.50 | 1.50 | 14.70 | 16.59 | 2.01 | 2.80 |
| RS12B-SS-3 |
19.05 | 3/4" | 12.07 | 11.68 | 5.72 | 30.65 | 32.60 | 65.60 | 1.80 | 1.80 | 16.10 | 19.46 | 2.67 | 3.80 |
