Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.

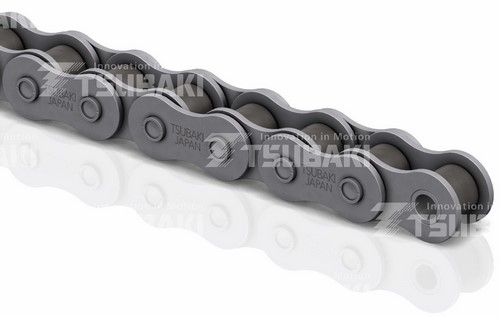

Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características
SIMPLES |
|
Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Força de tensão mínima | Força de tensão média |
Peso Aproximada |
|||||

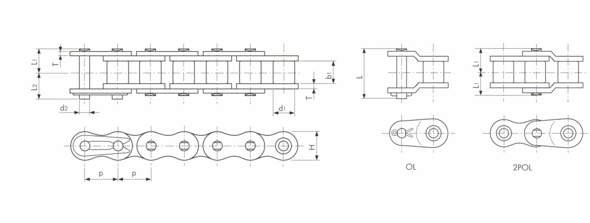

P | R | W | Diâmetro (D2) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T) | Altura H(max.) |
kN | kN | Kg/m | ||
RS35-NEP-1 | 9.525 | 3/8" | 5.08 | 4.78 | 3.59 | 5.85 | 6.85 | 13.50 | 1.25 | 9.00 | 9.8 | 11.3 | 0.33 |
RS40-NEP-1 | 12.70 | 1/2" | 7.92 | 7.95 | 3.97 | 8.25 | 9.95 | 18.00 | 1.50 | 12.00 | 17.7 | 19.1 | 0.64 |
RS50-NEP-1 | 15.875 | 5/8" | 10.16 | 9.53 | 5.09 | 10.30 | 12.00 | 22.50 | 2.00 | 15.00 | 28.4 | 31.4 | 1.04 |
RS60-NEP-1 | 19.05 | 3/4" | 11.91 | 12.70 | 5.96 | 12.85 | 14.75 | 28.20 | 2.40 | 18.10 | 40.2 | 44.1 | 1.53 |
RS80-NEP- | 25.40 | 1" | 15.88 | 15.88 | 7.94 | 16.25 | 19.25 | 38.20 | 3.20 | 24.10 | 71.6 | 78.5 | 2.66 |
