Descrição
Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.
Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características
| SIMPLES |
|
|

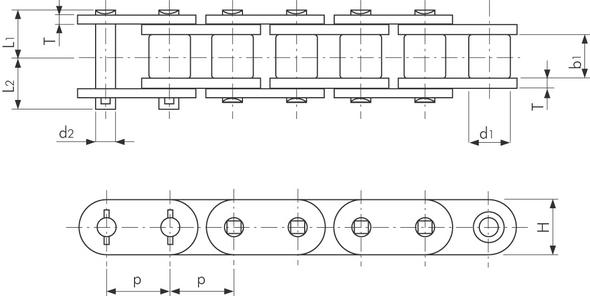

| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Força de tensão mínima | Força de tensão média | Peso Aproximada |
||||
| P | R | W | Diâmetro (D) | Dimensões (L1) |
(L2) | Espessura (T1) | Altura H (Max.) |
kN | Kg/m | Kg/m | ||
| RF100-US-1 | 31.75 | 1 1/4" | 19.05 | 19.05 | 10.32 | 22.35 | 25.35 | 4.8 | 30.1 | 149 | 172 | 5.07 |
| RF120-US-1 | 38.10 | 1 1/2" | 22.23 | 25.40 | 12.28 | 27.55 | 31.55 | 5.6 | 36.2 | 213 | 245 | 7.22 |
| RF140-US-1 | 44.45 | 1 3/4" | 25.40 | 25.40 | 13.97 | 29.5 | 34.2 | 6.4 | 42.2 | 273 | 314 | 9.24 |
| RF160-US-1 | 50.80 | 2" | 28.58 | 31.75 | 15.62 | 34.5 | 40.2 | 7.1 | 48.2 | 341 | 392 | 12.19 |
