Descrição
Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.
Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características
| SIMPLES |
|
|
| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Passo Trans. | Força de tensão mínima | Força de tensão média | Carga máxima admissível |
Peso Aproximada |
|||||

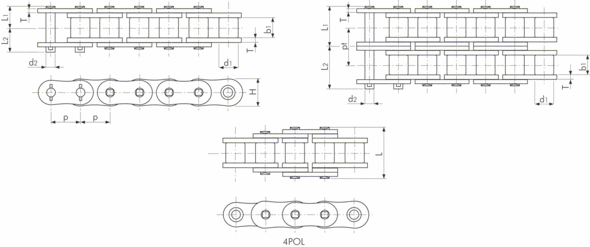

| P | R | W | Diâmetro (D) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T1) | Altura H (Max.) |
pt | kN | Kg/m | KN | Kg/m | ||
| RS80-SUPER-1 | 25.40 | 1" | 15.88 |
15.88 | 7.94 | 16.3 | 19.25 | 39.3 | 3.2 | 24.1 | - | 74.2 | 85.3 |
18.6 | 2.81 |
| RS120-SUPER-1 | 31.75 |
11/4" |
19.05 | 19.05 | 9.54 | 19.75 |
22.85 | 48.0 | 4.0 |
30.1 | - | 111 |
127 |
30.4 |
4.25 |
| RS140-SUPER-1 | 38.10 |
11/2" |
22.23 |
25.40 |
11.11 |
24.9 |
28.9 |
59.9 |
4.8 |
36.2 | - | 162 |
186 |
39.2 |
6.3 |
| RS160-SUPER-1 | 44.45 | 13/4" | 25.40 | 25.40 | 12.71 | 26.9 | 31.7 | 65.7 | 5.6 | 42.2 | - | 213 |
245 |
53.9 |
8.04 |
| RF06B-LAMBDA-1 | 50.80 |
2" |
28.58 |
31.75 |
14.29 |
31.85 |
36.85 |
77.2 |
6.4 |
48.2 | - | 273 |
314 |
70.6 |
10.79 |
| RS200-SUPER-1 | 63.50 | 21/2" | 39.68 | 38.10 | 19.85 | 39.0 | 44.8 | 94.9 | 8.0 |
60.3 | - | 439 |
505 |
94.1 |
17.63 |
| RS240-SUPER-1 | 76.20 | 3" | 47.63 | 47.63 | 23.81 | 47.9 | 55.5 | 116.0 | 9.5 |
72.4 | - | 639 | 735 | 132 | 25.63 |
| DUPLA |
|
|
| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Passo Trans. | Força de tensão mínima | Força de tensão média | Carga máxima admissível | Peso Aproximada |
|||||
| P | R | W | Diâmetro (D) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T1) | Altura H (Max.) |
pt | kN | Kg/m |
KN | Kg/m | ||
| RS80-SUPER-2 | 25.40 | 1" | 15.88 | 15.88 |
7.94 |
30.9 | 33.9 | - | 3.2 | 24.1 | 29.3 | 148 | 171 |
31.7 | 5.62 |
| RS100-SUPER-2 | 31.75 | 11/4" | 19.05 | 19.05 | 9.54 | 37.7 |
40.8 |
- | 4.0 |
30.1 | 35.8 | 222 |
255 |
51.7 | 8.38 |
| RS120-SUPER-2 | 38.10 | 11/2" | 22.23 | 25.40 | 11.11 | 47.6 |
51.6 |
- | 4.8 | 36.2 | 45.4 | 324 |
373 |
66.7 |
12.44 |
