Descrição
Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.

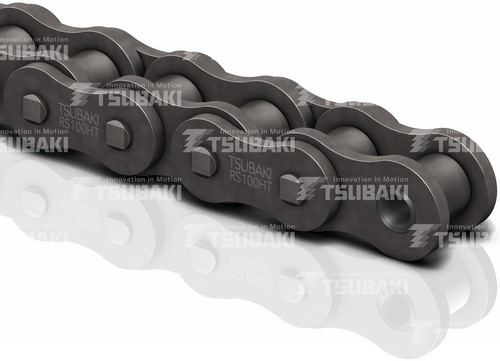

Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características
| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Força de Tensão Mínima | Força de Tensão Média | Peso Aprox. | ||||

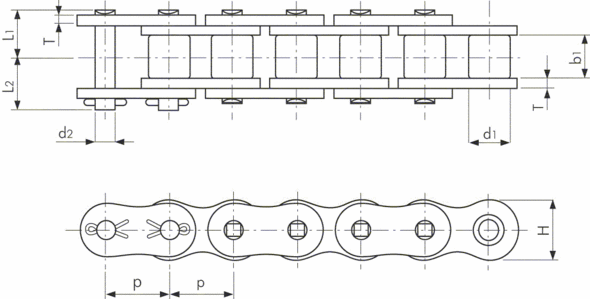

| P | d1 | b1 | Diâmetro (d2) | Dimensões (L1) |
(L2) | Espessura (T) |
Altura H (Max.) | kN | kN | Kg/m | ||
| RS60-HT-1 | 19.05 | 3/4" | 11.91 | 12.70 | 5.96 | 14.80 | 17.00 | 3.20 | 18.10 | 48.1 | 55.9 | 1.80 |
| RS80-HT-1 | 25.40 | 1" | 15.88 | 15.88 | 7.94 | 18.30 | 20.90 | 4.00 | 24.10 | 81.4 | 93.2 | 3.11 |
| RS100-HT-1 | 31.75 | 1 1/4" | 19.05 | 19.05 | 9.54 | 21.80 | 24.50 | 4.80 | 30.10 | 124.0 | 142.0 | 4.58 |
| RS120-HT-1 | 38.10 | 1 1/2" | 22.23 | 25.40 | 11.11 | 26.95 | 30.55 | 5.60 | 36.20 | 167.0 | 191.0 | 6.53 |
| RS140-HT-1 | 44.45 | 1 3/4" | 25.40 | 25.40 | 12.71 | 28.90 | 33.10 | 6.40 | 42.20 | 218.0 | 250.0 | 8.27 |
| RS160-HT-1 | 50.80 | 2" | 28.58 | 31.75 | 14.29 | 33.95 | 38.45 | 7.15 | 48.20 | 278.0 | 319.0 | 10.97 |
| RS200-HT-1 | 63.50 | 2 1/2" | 39.68 | 38.10 | 19.85 | 42.90 | 48.10 | 9.50 | 60.30 | 486.0 | 559.0 | 18.41 |
| RS240-HT-1 | 76.20 | 3" | 47.63 | 47.63 | 23.81 | 54.80 | 62.30 | 12.70 | 72.40 | 768.0 | 883.0 | 29.13 |
