BS X-LAMBDA

Descrição

Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.

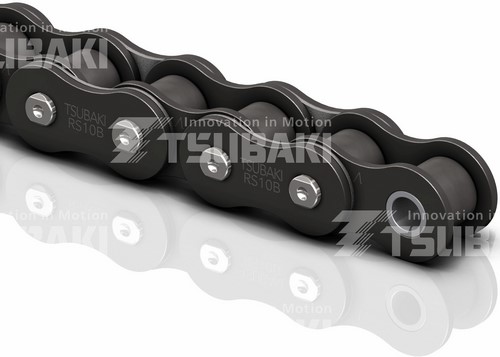

Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request




Características

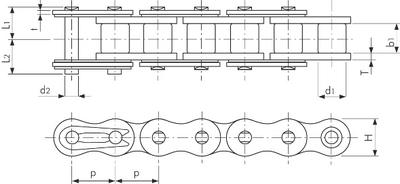

Corrente Tsubaki No. Passo   Diâmetro do Rolo Lar. Int. do Elo Interno Pinos       Placas   Força de Tensão Mínima ISO 606 Approx. Mass
  P   R W Diâmetro (D) Dimensões (L1)
(L2) Espessura (T) t Altura H (Max.) kN  Kg/m
RS08B-LMDX-1 12.70 1/2" 8.51 7.75 4.45 9.00 10.60 1.60 1.60 12.00 17.8 0.70
RS10B-LMDX-1 15.875 5/8" 10.16 9.65 5.08 10.30 12.00 1.50 1.50 14.70 22.2 9.95
RS12B-LMDX-1 19.05 3/4" 12.07 11.68 5.72 11.90 13.80 1.80 1.80 16.10 28.9 1.25
RS16B-LMDX-1 25.40 1" 15.88 17.02 8.28 18.55 20.75 4.00 3.20 21.00 60.0 2.70
