Descrição
Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.

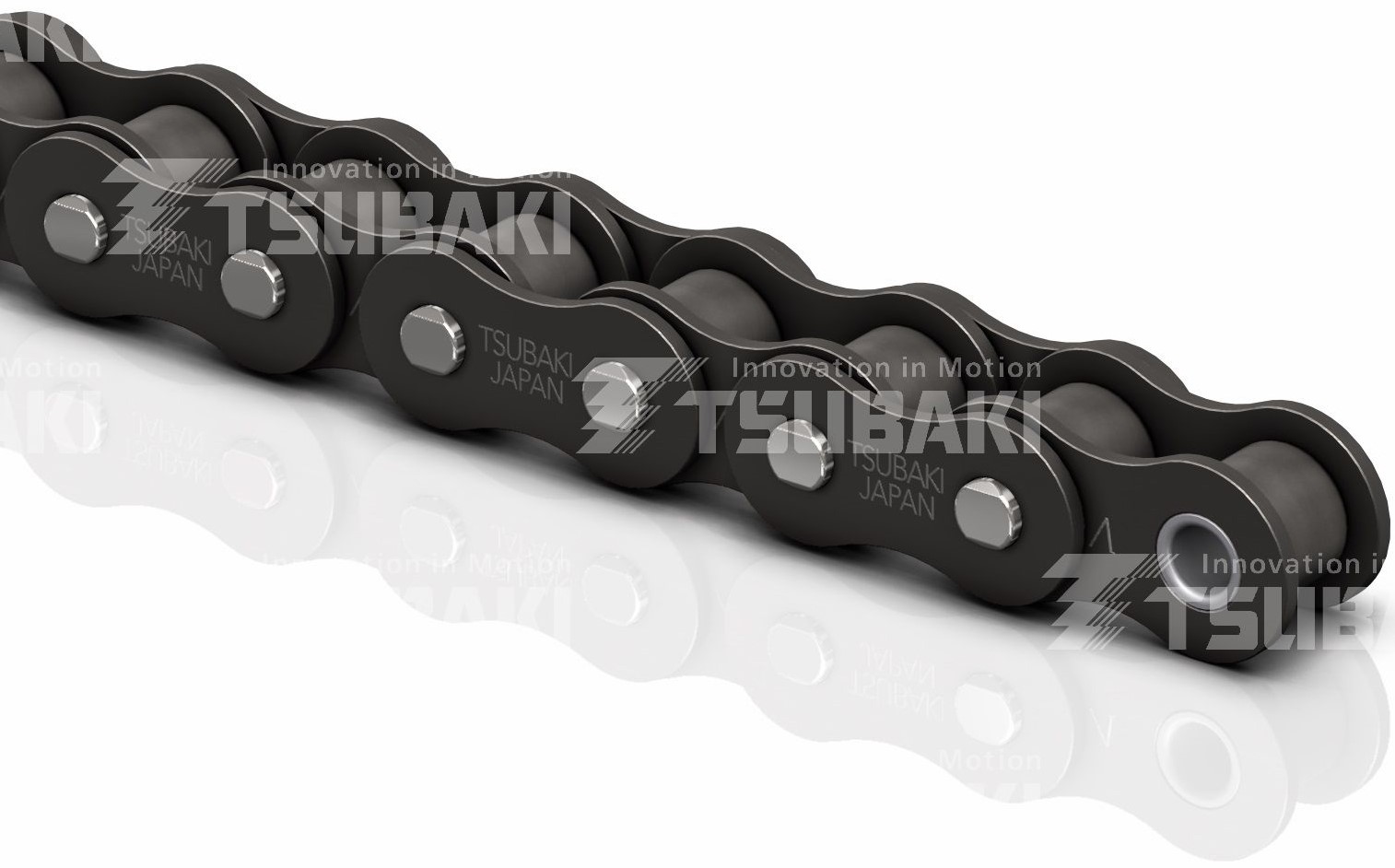

Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características

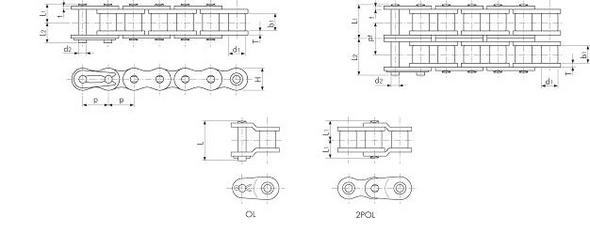

| SIMPLES |
|
|
| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Passo Trans. | Força de tensão mínima | Peso Aproximada |
Nº Passos |
||||||
| P | R | W | Diâmetro (D) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T1) | (T2) |
Altura H (Max.) |
C | kN | Kg/m | 5M | ||
| RF06B-LAMBDA-1 | 12.70 |
1/2" |
7.92 | 7.55 | 3.97 |
8.75 |
10.45 |
20.0 |
1.5 | 2.0 |
12.0 |
- | 19.1 | 0.70 | 150 |
| RF06B-LAMBDA-1 | 15.875 |
5/8" |
10.16 |
9.26 |
5.09 |
10.75 |
12.45 |
24.0 |
2.0 |
2.4 |
15.0 |
- | 31.4 |
1.11 |
135 |
| RF06B-LAMBDA-1 | 19.05 |
3/4" |
11.91 |
12.28 |
5.96 |
13.70 |
15.75 |
32.0 |
2.4 |
3.2 |
18.1 |
- | 44.1 |
1.72 |
120 |
| RF06B-LAMBDA-1 | 25.40 |
1" |
15.88 |
15.48 |
7.94 |
17.15 |
20.25 |
39.9 |
3.2 |
4.0 |
24.1 |
- | 78.5 |
2.77 |
90 |
| RF06B-LAMBDA-1 | 31.75 |
11/4" |
19.05 |
18.70 |
9.54 |
20.65 |
23.85 |
47.5 |
4.0 |
4.8 |
30.1 |
- | 118 |
4.30 |
80 |
| RF06B-LAMBDA-1 | 38.10 |
11/2" |
22.23 |
24.75 |
11.11 |
25.75 |
29.95 |
59.0 |
4.8 |
5.6 |
36.2 |
- | 167 |
6.4 |
50 |
| RF06B-LAMBDA-1 | 44.45 |
13/4" |
25.40 |
24.75 |
12.71 |
27.70 |
32.20 |
63.7 |
5.6 |
6.4 |
42.2 |
- | 216 |
8.1 |
50 |
| DUPLA |
|
|
| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Passo Trans. | Força de tensão média | Peso Aproximada | Velocidade Permitida | ||||||
| P | R | W | Diâmetro (D) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T1) | (T2) |
Altura H (Max.) |
C | kN | Kg/m |
M/Min | ||
| RS05B-2 | 12.70 | 1/2" | 7.92 | 7.55 | 3.97 | 16.5 | 18.1 | - | 1.5 | 2.0 | 12.0 | 15.4 | 38.2 | 1.4 | 150 |
| RF06B-2 | 15.875 | 5/8" | 10.16 | 9.26 |
5.09 | 20.2 | 22.0 | - | 2.0 |
2.4 | 15.0 | 19.0 | 62.8 | 2.2 |
135 |
| RS08B-2 | 19.05 | 3/4" | 11.91 | 12.28 | 5.96 | 26.05 | 28.05 | - | 2.4 | 3.2 | 18.1 | 24.52 | 88.3 | 3.4 | 120 |
| RS10B-2 | 25.40 | 1" | 15.88 | 15.48 | 7.94 | 32.7 | 35.9 | - | 3.2 | 4.0 | 24.1 | 31.1 | 157 | 5.5 | 90 |
| RS12B-2 | 31.75 | 11/4" | 19.05 | 18.70 | 9.54 | 39.5 | 42.5 | - | 4.0 | 4.8 | 30.1 | 37.6 | 235 | 8.6 | 80 |
