Descrição
Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.

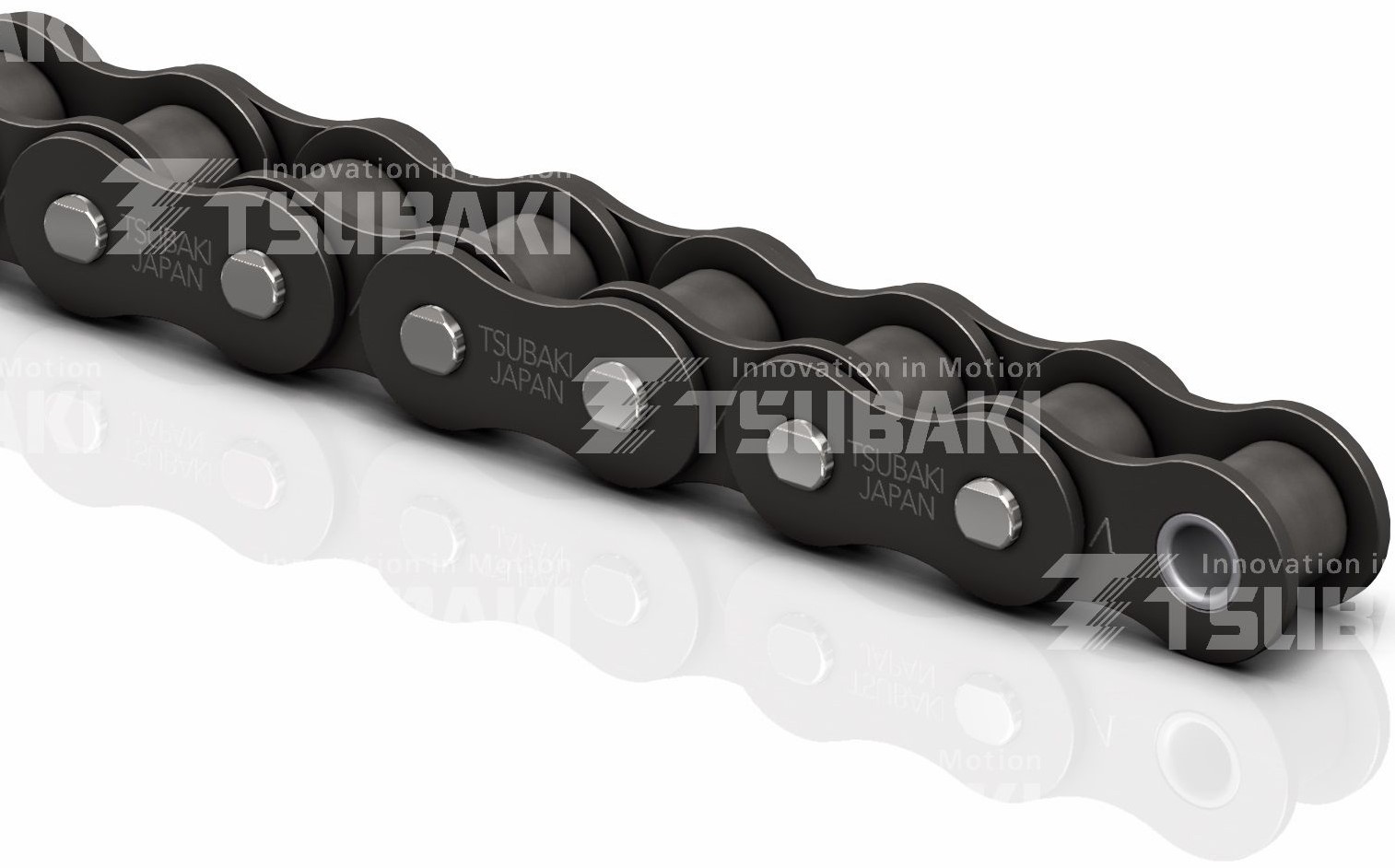

Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características
| SIMPLES |
|
|

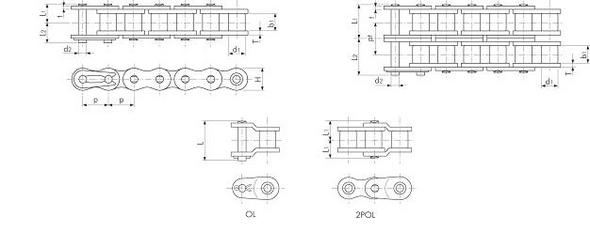

| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Passo Trans. | Força de tensão mínima | Peso Aproximada |
Nº Passos |
||||||
| P | R | W | Diâmetro (D) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T1) | (T2) |
Altura H (Max.) |
C | kN | Kg/m | 5M | ||
| RF06B-LAMBDA-1 | 9.525 | 3/8" | 6.35 | 5.72 | 3.28 | 6.1 | 7.7 | 15.1 | 1.0 | 1.3 | 8.2 | - | 8.90 | 0.39 |
526 |
| RS08B-LAMBDA-1 | 12.70 | 1/2" | 8.51 | 7.75 | 4.45 |
8.4 | 10.0 | 18.6 |
1.6 |
1.6 |
12.0 |
- | 17.8 |
0.70 |
394 |
| RS10B-LAMBDA-1 | 15.875 | 5/8" | 10.16 | 9.65 | 5.08 | 9.55 | 11.25 | 20.8 |
1.5 |
1.5 |
14.7 |
- | 22.2 |
0.95 |
316 |
| RS12B-LAMBDA-1 | 19.05 | 3/4" | 12.07 | 11.68 | 5.72 | 11.1 | 13.0 | 24.4 | 1.8 |
1.8 |
16.1 |
- | 28.9 |
1.25 |
264 |
| RS16B-LAMBDA-1 | 25.40 | 1" | 15.88 | 17.02 | 8.28 | 17.75 | 19.95 | 39.3 | 3.2 |
4.0 |
21.0 |
- | 60.0 |
2.70 |
198 |
| RS20B-LAMBDA-1 | 31.75 | 11/4" | 19.05 | 19.56 | 10.19 | 19.9 |
23.1 | 46.6 | 3.4 |
4.4 |
26.4 |
- | 95.0 |
3.85 |
158 |
| RS24B-LAMBDA-1 | 38.10 | 11/2" | 25.40 | 25.40 | 14.63 | 26.65 | 31.85 | 61.7 |
5.6 |
6.0 |
33.4 |
- | 160 |
7.45 |
132 |
| DUPLA |
|
|
| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Pinos | Placas | Passo Trans. | Força de tensão mínima | Peso Aproximada | Nº Passos | ||||||
| P | R | W | Diâmetro (D) | Dimensões (L1) |
(L2) | Comprimento (L) |
Espessura (T1) | (T2) |
Altura H (Max.) |
C | kN | Kg/m |
5M | ||
| RF06B-LAMBDA-2 | 9.525 | 3/8" | 6.35 | 5.72 | 3.28 | 11.2 | 12.8 | 25.9 | 1.0 | 1.3 | 8.2 | 10.24 | 16.9 | 0.75 | 526 |
| RS08B-LAMBDA-2 | 12.70 | 1/2" | 8.51 | 7.75 | 4.45 | 15.3 | 16.9 | 34.5 | 1.6 | 1.6 | 12.0 | 13.92 | 31.1 | 1.35 | 394 |
| RS10B-LAMBDA-2 | 15.875 | 5/8" | 10.16 | 9.65 | 5.08 | 17.85 | 19.55 | 39.4 | 1.5 | 1.5 | 14.7 | 16.59 | 44.5 | 1.85 | 316 |
| RS12B-LAMBDA-2 | 19.05 | 3/4" | 12.07 | 11.68 | 5.72 | 20.85 | 22.75 | 45.9 | 1.8 | 1.8 | 16.1 | 19.46 | 57.8 | 2.50 | 264 |
| RS16B-LAMBDA-2 | 25.40 | 1" | 15.88 | 17.02 | 8.28 | 33.55 | 35.75 | 73.4 | 3.2 | 4.0 | 21.0 | 31.88 | 106 | 5.40 | 198 |
| RS20B-LAMBDA-2 | 31.75 | 11/4" | 19.05 | 19.56 | 10.19 | 38.25 | 41.45 | 84.6 | 3.4 | 4.4 | 26.4 | 36.45 | 170 | 7.65 | 158 |
| RS24B-LAMBDA-2 | 38.10 | 11/2" | 25.40 | 25.40 | 14.63 | 50.8 | 56.0 | 112.8 | 5.6 | 6.0 | 33.4 | 48.36 | 280 | 14.65 | 132 |
