Descrição

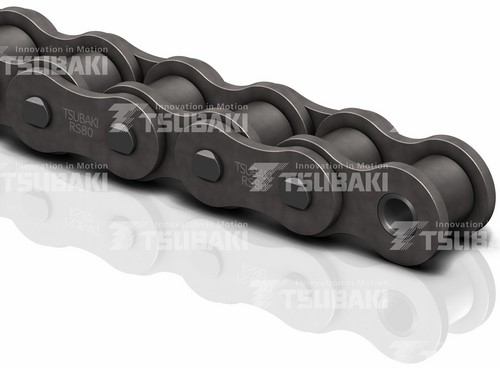

Since 1917 Tsubakimoto Chain Company has maintained a line-up of cutting-edge chain products with exceptional quality and performance that help end-users meet their power transmission and conveying requirements.
Tsubaki is proud to introduce the 4th generation, enhanced BS/DIN European premium chain. The product is available in chain sizes from RF06B up to RS48B*. Simplex, duplex and triplex executions are at your disposal.
*RF06B curled bush; RS56B/RS72B on request
Características
| SIMPLES |
|
|

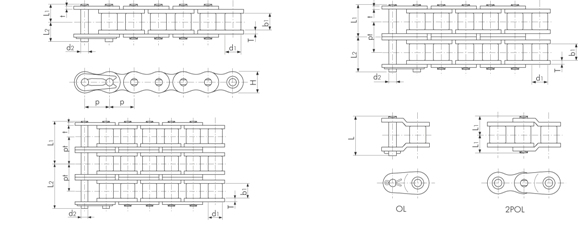

| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Tipo de Pino | Pinos | Placas | Passo Trans. | Força de Tensão Mín. ANSI | Força de Tensão Mín. Tsubaki | Carga máx. admissível | Peso Aprox. | |||||
| P | d1 | b1 | Diâmetro (d2) | Dim. (L1) |
(L2) | Comp. (L) |
Esp. (T) | Alt. H (Max.) | pt | kN | kN |
Kn | Kg/m | |||
| RS25-1 | 6.35 | 1/4" | 3.30 | 3.18 | Rebitagem | 2.31 | 3.8 | 4.5 | - | 0.74 | 5.84 | - | 3.6 | 4.12 | 0.64 | 0.14 |
| RS35-1 | 9.525 | 3/8" | 5.08 | 4.78 | Rebitagem | 3.59 | 5.85 | 6.85 | 13.5 | 1.25 | 9.0 | - | 8.7 | 9.81 | 2.16 | 0.33 |
| RS37-1 | 12.70 | 1/2" | 7.80 | 3.40 | Rebitagem | 3.63 | 5.1 | 5.9 | 12.45 | 1.0 | 9.8 | - | - | 8.14 | 1.67 | 0.29 |
| RS38-1 | 12.70 | 1/2" | 7.80 | 4.80 | Rebitagem | 3.63 | 6.0 | 7.1 |
14.1 | 1.1 | 9.8 |
- | - | 8.14 |
1.67 | 0.35 |
| RS41-1 | 12.70 | 1/2" | 7.77 | 6.38 | Rebitagem | 3.59 |
6.75 | 7.95 | 15.1 | 1.25 |
9.8 | - | 7.4 | 10.3 | 2.26 | 0.41 |
| RS40-1 | 12.70 | 1/2" | 7.92 | 7.95 | Rebitagem | 3.97 |
8.25 | 9.95 | 18.2 | 1.5 | 12.0 | - | 15.2 | 17.7 | 3.63 | 0.64 |
| RS50-1 | 15.875 | 5/8" | 10.16 | 9.53 | Rebitagem | 5.09 | 10.3 | 11.9 | 22.6 | 2.0 | 15.0 | - | 24 | 28.4 |
6.37 | 1.04 |
| RS60-1 | 19.05 | 3/4" | 11.91 | 12.70 | Contrapino / Rebitagem | 5.96 | 12.85 | 14.75 | 28.2 |
2.4 | 18.1 | - | 34.2 | 40.2 | 8.83 | 1.53 |
| RS80-1 | 25.4 | 1" | 15.88 | 15.88 | Contrapino / Rebitagem | 7.94 | 16.25 | 19.25 | 36.6 | 3.2 | 24.1 | - | 61.2 | 71.6 | 14.7 | 2.66 |
| RS100-1 | 31.75 | 1 1/4" | 19.05 | 19.05 | Contrapino / Rebitagem | 9.54 | 19.75 | 22.85 | 43.7 |
4.0 | 30.1 |
- | 95.4 | 107 | 22.6 | 3.99 |
| RS120-1 | 38.10 | 1 1/2" | 22.23 | 25.40 | Contrapino / Rebitagem | 11.11 | 24.9 | 28.9 | 55.0 | 4.8 |
36.2 | - | 137.1 | 148 | 30.4 | 5.93 |
| RS140-1 | 44.45 | 1 3/4" | 25.40 | 25.40 | Contrapino | 12.71 | 26.9 | 31.7 | 59.5 | 5.6 | 42.2 | - | 185.9 | 193 | 40.2 | 7.49 |
| RS160-1 | 50.80 | 2" | 28.58 | 31.75 | Contrapino | 14.29 | 31.85 | 36.85 | 70.2 | 6.4 | 48.2 | - | 244.6 | 255 | 53.0 | 10.10 |
| RS180-1 | 57.15 | 2 1/4" | 35.71 | 35.72 | Contrapino | 17.46 | 35.65 | 42.45 | 80.6 | 7.15 | 54.2 | - | 308.2 | 336 | 60.8 | 13.45 |
| RS200-1 | 63.50 | 2 1/2" | 39.68 | 38.10 | Contrapino | 19.85 | 39.0 | 44.8 | 87.3 | 8.0 | 60.3 | - | 381.7 | 427 | 71.6 | 16.49 |
| RS240-1 | 76.20 | 3" | 47.63 | 47.63 | Rebitagem | 23.81 | 47.9 | 55.5 | 106.7 | 9.5 | 72.4 | - | 550.4 | 623 | 99.0 | 24.5 |
| DUPLA |
|
|
| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Tipo de Pino | Pinos | Placas | Passo Trans. | Força de Tensão Mín. ANSI | Força de Tensão Mín. Tsubaki | Carga máx. admissível | Peso Aprox. | |||||
| P | d1 | b1 | Diâmetro (d2) | Dim. (L1) |
(L2) | Comp. (L) |
Esp. (T) | Alt. H (Max.) | pt | kN | kN |
Kn | Kg/m | |||
| RS25-2 | 6.35 | 1/4" | 3.30 | 3.18 | Rebitagem | 2.31 | 6.95 | 7.75 | - | 0.74 | 5.84 | 6.4 | 7.2 | 8.24 | 1.08 | 0.27 |
| RS35-2 | 9.525 | 3/8" | 5.08 | 4.78 | Rebitagem | 3.59 | 10.9 | 11.9 | 24.5 | 1.25 | 9.0 | 10.1 | 17.4 | 19.6 | 3.63 | 0.69 |
| RS40-2 | 12.70 | 1/2" | 7.92 | 7.95 | Rebitagem | 3.97 | 15.45 | 17.15 | 33.5 | 1.5 | 12.0 | 14.4 | 30.4 | 35.3 | 6.18 | 1.27 |
| RS50-2 | 15.875 | 5/8" | 10.16 | 9.53 | Rebitagem | 5.09 | 19.35 | 21.15 | 41.8 | 2.0 | 15.0 | 18.1 | 48 | 56.9 | 10.7 | 2.07 |
| RS60-2 | 19.05 | 3/4" | 11.91 | 12.70 | Rebitagem | 5.96 | 24.25 | 26.25 | 52.6 | 2.4 | 18.1 | 22.8 | 68.4 | 80.4 | 15.0 | 3.04 |
| RS80-2 | 25.4 | 1" | 15.88 | 15.88 | Rebitagem | 7.94 | 30.9 | 33.9 | 67.5 | 3.2 | 24.1 | 29.3 | 122.4 | 143 | 25.0 | 5.27 |
| RS100-2 | 31.75 | 1 1/4" | 19.05 | 19.05 | Contrapino | 9.54 | 37.7 | 40.8 | 81.5 | 4.0 | 30.1 | 35.8 | 190.8 | 214 | 38.3 | 7.85 |
| RS120-2 | 38.10 | 1 1/2" | 22.23 | 25.40 | Contrapino | 11.11 | 47.6 | 51.6 | 103.2 | 4.8 | 36.2 | 45.4 | 274.2 | 296 | 51.7 | 11.70 |
| RS140-2 | 44.45 | 1 3/4" | 25.40 | 25.40 | Contrapino | 12.71 | 51.35 | 56.15 | 112.3 | 5.6 | 42.2 | 48.9 | 371.8 | 386 | 68.4 | 14.83 |
| RS160-2 | 50.80 | 2" | 28.58 | 31.75 | Contrapino | 14.29 | 61.15 | 66.15 | 132.2 | 6.4 | 48.2 | 58.5 | 489.2 | 510 | 90.0 | 20.04 |
| RS180-2 | 57.15 | 2 1/4" | 35.71 | 35.72 | Contrapino | 17.46 | 68.75 | 75.35 | 151.1 | 7.15 | 54.2 | 65.8 | 616.4 | 673 | 103 | 26.52 |
| RS200-2 | 63.50 | 2 1/2" | 39.68 | 38.10 | Contrapino | 19.85 | 74.85 | 80.65 | 161.2 | 8.0 | 60.3 | 71.6 | 763.4 | 853 | 122 | 32.63 |
| RS240-2 | 76.20 | 3" | 47.63 | 47.63 | Rebitagem | 23.81 | 91.9 | 99.4 | 198.4 | 9.5 | 72.4 | 87.8 | 1100.8 | 1250 | 168 | 48.1 |
| TRIPLA |
|
|
| Corrente Tsubaki No. | Passo | Diâmetro do Rolo | Lar. Int. do Elo Interno | Tipo de Pino | Pinos | Placas | Passo Trans. | Força de Tensão Mín. ANSI | Força de Tensão Mín. Tsubaki | Carga máx. admissível | Peso Aprox. | |||||
| P | d1 | b1 | Diâmetro (d2) | Dim. (L1) |
(L2) | Comp. (L) |
Esp. (T) | Alt. H (Max.) | pt | kN | kN |
Kn | Kg/m | |||
| RS25-3 | 6.35 | 1/4" | 3.30 | 3.18 | Rebitagem | 2.31 | 10.15 | 10.95 | - | 0.74 | 5.84 | 6.4 | 10.8 | 12.4 | 1.57 | 0.42 |
| RS35-3 | 9.525 | 3/8" | 5.08 | 4.78 | Rebitagem | 3.59 | 16.0 | 16.9 | 34.6 | 1.25 | 9.0 | 10.1 | 26.1 | 29.4 | 5.39 | 1.05 |
| RS40-3 | 12.70 | 1/2" | 7.92 | 7.95 | Rebitagem | 3.97 | 22.65 | 24.15 | 47.9 | 1.5 | 12.0 | 14.4 | 45.6 | 53.0 | 9.12 | 1.90 |
| RS50-3 | 15.875 | 5/8" | 10.16 | 9.53 | Rebitagem | 5.09 | 28.4 | 30.2 | 59.9 | 2.0 | 15.0 | 18.1 | 72 | 85.3 | 16.0 | 3.1 |
| RS60-3 | 19.05 | 3/4" | 11.91 | 12.70 | Rebitagem | 5.96 | 35.65 | 38.15 | 75.5 | 2.4 | 18.1 | 22.8 | 102.6 | 121 | 22.1 | 4.54 |
| RS80-3 | 25.4 | 1" | 15.88 | 15.88 | Rebitagem | 7.94 | 45.6 | 48.5 | 96.9 | 3.2 | 24.1 | 29.3 | 183.6 | 215 | 36.8 | 7.89 |
| RS100-3 | 31.75 | 1 1/4" | 19.05 | 19.05 | Contrapino | 9.54 | 55.65 | 58.75 | 117.3 | 4.0 | 30.1 | 35.8 | 286.2 | 321 | 56.4 | 11.77 |
| RS120-3 | 38.10 | 1 1/2" | 22.23 | 25.40 | Contrapino | 11.11 | 70.4 | 74.4 | 148.6 | 4.8 | 36.2 | 45.4 | 411.3 | 444 | 76.0 | 17.53 |
| RS140-3 | 44.45 | 1 3/4" | 25.40 | 25.40 | Contrapino | 12.71 | 75.85 | 80.75 | 161.3 | 5.6 | 42.2 | 48.9 | 557.7 | 580 | 101 | 22.20 |
| RS160-3 | 50.80 | 2" | 28.58 | 31.75 | Contrapino | 14.29 | 90.45 | 95.45 | 190.7 | 6.4 | 48.2 | 58.5 | 733.8 | 765 | 132 | 30.02 |
| RS180-3 | 57.15 | 2 1/4" | 35.71 | 35.72 | Rebitagem | 17.46 | 101.7 | 108.5 | 216.9 | 7.15 | 54.2 | 65.8 | 924.6 | 1010 | 152 | 38.22 |
| RS200-3 | 63.50 | 2 1/2" | 39.68 | 38.10 | Rebitagem | 19.85 | 110.75 | 116.45 | 233.0 | 8.0 | 60.3 | 71.6 | 1145.1 | 1280 | 179 | 49.02 |
| RS240-3 | 76.20 | 3" | 47.63 | 47.63 | Rebitagem | 23.81 | 135.85 | 143.15 | 286.3 | 9.5 | 72.4 | 87.8 | 1651.2 | 1870 | 248 | 71.6 |
